METRAHIT AM XTRA (METRAHIT X-TRA) | Gossen Metrawatt

TRMS digital multimeter METRAHIT AM XTRA (METRAHIT X-TRA), 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 10 nF to 1000 µF, CAT III 1000 V, CAT IV 600 V

Order No.: 21K5306
EAN: 4012932118087
MPN:
METRAHIT AM XTRA (METRAHIT X-TRA)
M240A
Series: METRAHIT
Gossen Metrawatt

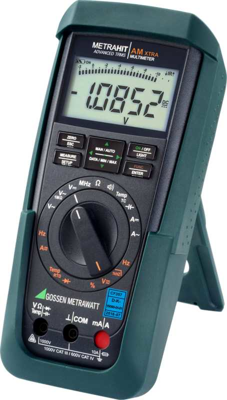

METRAHIT AM XTRA (METRAHIT X-TRA) Gossen Metrawatt Multimeters Image 1

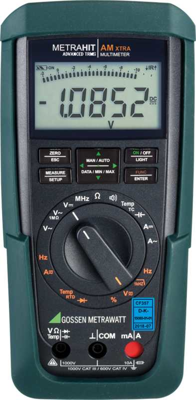

METRAHIT AM XTRA (METRAHIT X-TRA) Gossen Metrawatt Multimeters Image 2
Image may differ
Print
Key Specification:
Version digital multimeter
TRMS possible Yes
max. measured current value (DC) 10 A
max. measured current value (AC) 10 A
max. voltage measuring range (DC) 1000 V

Ordering Information:

*** including DAkkS calibration certificate ***
Download Datasheet Technical specifications
Unit Price (€ / pc.)
875.84 € *
Available: 0 pcs.
Available in 7 Days: 7 pcs.
Leadtime: 4 Weeks **
Add to Cart
Total Price:
875.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
875.84 €
Description
Technical specifications
Download
Logistics
Compliance
Accessory

Multimeter, M240A, Gossen Metrawatt

TRMS System Multimeter with 12,000 digits digital display, data logger and IR interface

The METRAHIT AM XTRA is the top instrument in the METRAHIT Advanced Multimeter series.

Top technology down to the last detail: The robust digital multimeters of the METRAHIT AM series offer convincing performance features in every respect. They are equipped with state-of-the-art technology and guarantee highly precise results. Their ergonomic design ensures maximum ease of use and safety. With their wide range of functions, they are ideally suited for demanding measuring tasks in many areas

  • TRMSAC, AC+DC measurement up to 20 kHz for voltage and current
  • Data logger and IR interface to PC
  • Power supply connection
  • Universally applicable in all areas of electrical engineering!
  • Echteffektivwertmessung bis 20 kHz mit 12000 Digits Digitalanzeige und Analogskala
  • True RMS measurement up to 20 kHz with 12000 digits digital display and analogue scale
  • Automatic measuring range selection and measured value storage
  • Safety for the user and the device in the measurement categories CAT IV up to 600V and CAT III up to 1000V
Technical specifications
Display Digits 12000
Version digital multimeter
TRMS possible Yes
Capacity range 10 nF to 1000 µF
max. measured current value (AC) 10 A
max. measured current value (DC) 10 A
max. resistance range 40 MΩ
max. voltage measuring range (AC) 1000 V
max. voltage measuring range (DC) 1000 V
Surge voltage category CAT III 1000 V, CAT IV 600 V
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 90303200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
