METRAHIT ENERGY DC-POWER SET | Gossen Metrawatt

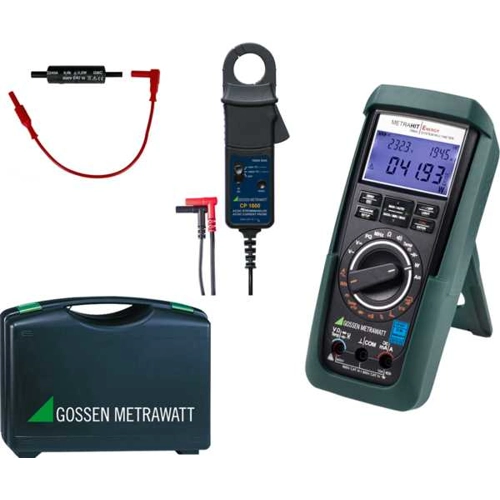

TRMS digital multimeter METRAHIT ENERGY DC-POWER SET, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 60 nF to 600 μF, CAT III 600 V, CAT IV 300 V
Unit Price (€ / pc.)
2,153.90 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Multimeter, M249D, Gossen Metrawatt
The METRAHIT ENERGY is a digital multimeter with power and energy measurement, e.g. for recording the energy consumption during operation and stand-by of entertainment, communication and information technology devices or household appliances (white goods, e.g. refrigerators) as well as a single-phase power quality (PQ) analyzer for recording power disturbance events.
The METRAHIT ENERGY breaks all performance limits of digital multimeters. The DC-Power Set enables power and energy measurement on DC equipment and systems with currents up to 1250A. By simultaneously measuring TRMS current and voltage, AC, AC+DC or DC, with 60,000 digits resolution, it accurately determines all important power parameters.
Features
- True RMS power multimeter and data logger
- Simultaneous measurement of current and voltage and calculation of power and energy with active and reactive components.
- DC power measurement up to 1250 A with the Hall effect sensor CP1800 and the measurement shunt SR9800
Technical specifications
| Anzeige Digits | 60000 | |
| Ausführung | Leistungs-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 60 nF bis 600 μF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 60 MΩ | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT III 600 V, CAT IV 300 V |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90303200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
