METRAHIT ENERGY | Gossen Metrawatt

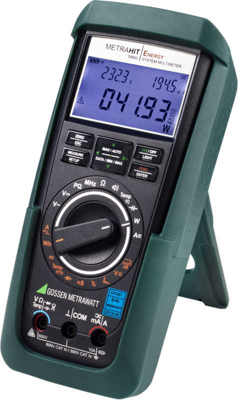

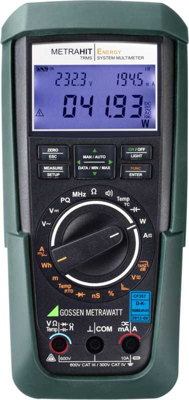

TRMS digital multimeter METRAHIT ENERGY, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 60 nF to 600 μF, CAT III 1000 V, CAT IV 600 V
Unit Price (€ / pc.)
1,508.92 € *
Available: 0 pcs.
Available in 7 Days: 8 pcs.
Leadtime: 4 Weeks **
Multimeter, M249A, Gossen Metrawatt
The METRAHIT ENERGY is a digital multimeter with power and energy measurement, e.g. for recording the energy consumption during operation and stand-by of entertainment, communication and information technology devices or household appliances (white goods, e.g. refrigerators) as well as a single-phase power analyzer (Power Quality) for testing the power quality and recording power disturbance events.
By simultaneous TRMS measurement of current and voltage, AC, AC+DC or DC, with 60,000 digits resolution, it precisely determines all important power parameters.
Features
- TRMS multimeter and data logger
- Simultaneous measurement of current and voltage and calculation of power and energy with active and reactive components.
- Power quality analysis: over-/undervoltages, dips & swells, transients, harmonic analysis up to the 15th harmonic
Technical specifications
| Anzeige Digits | 60000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 60 nF bis 600 μF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 60 MΩ | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT III 1000 V, CAT IV 600 V |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90303200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
