METRAHIT PM PRIME (METRAHIT ULTRA) | Gossen Metrawatt
TRMS digital multimeter METRAHIT PM PRIME (METRAHIT ULTRA), 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 0.001 nF to 3 mF, CAT III 600 V, CAT IV 300 V
Multimeter, M248A, Gossen Metrawatt

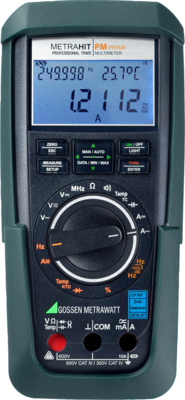

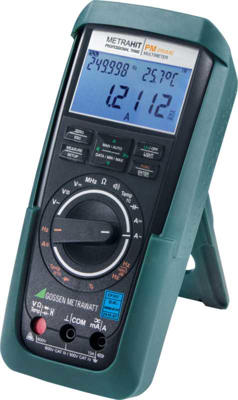

The METRAHIT PM PRIME is the precision multimeter of the METRAHIT Professional Multimeter Series, including temperature measurement and data logger. The high-end TRMS multimeters of the METRAHIT PM series: METRAHIT PM TECH, XTRA and PRIME are absolutely robust and reliable digital multimeters developed for professional use. The devices present themselves in an attractive design with housings made of impact-resistant plastic and are technically state of the art.
The ultra-accurate METRAHIT PM PRIME digital multimeter is an absolutely rugged and reliable digital multimeter with a housing made of impact-resistant ABS plastic. With a resolution of 310,000 digits, a basic accuracy of 0.02% and 22 different measuring functions, it has been developed for professional use.
Features
- TRMS precision multimeter and data logger with 310,000 digits resolution with 100 kHz TRMS bandwidth
- Direct current measurement 1 nA ...10 A
- Remote control via interface
| Anzeige Digits | 310000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 0,001 nF bis 3 mF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 40 MΩ | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT III 600 V, CAT IV 300 V |
| Ursprungsland | DE |
| Zolltarifnummer | 90303200 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
