PAV19ANPHW0N | GREATECS
Pushbutton, 1 pole, silver, unlit , 2 A/36 V, mounting Ø 19 mm, IP65, PAV19ANPHW0N
Unit Price (€ / pc.)
7.0329 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.03 € *
Price list
Quantity
Price per unit*
40 pcs.
7.0329 €
120 pcs.
6.6164 €
200 pcs.
6.1999 €
*incl. VAT plus shipping costs
**Subject to prior sale

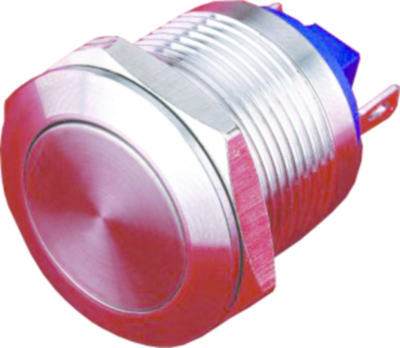

Pushbutton switch, PAV19ANPHW0N, GREATECS
Pushbutton switch, vandal-proof, momentary, 1NO, angular high actuator, screw terminals, stainless steel, non-illuminated, Protection class: IP 65 / KI09, Mounting dimension: 19 mm, Switching capacity: 36 VDC, Switching current: 2 A, Actuating force: 4 N, Actuating travel: 1.8 mm, Material: Stainless steel.
Technical specifications
| Anschluss | Schraubanschluss | |
| Bauform | rund | |
| Bedruckt | No | |
| beleuchtet | No | |
| Einbaudurchmesser | 19 mm | |
| Farbe Betätiger | silber | |
| Kontaktoberfläche | versilbert | |
| Polzahl | 1-polig | |
| Schaltfunktion | tastend | |
| Schaltleistung | 2 A/36 V | |
| Schutzart (Betätigungsseite) | IP65 | |
| Vandalengeschützt | Yes |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85365019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
