TP32N16009 | GREATECS

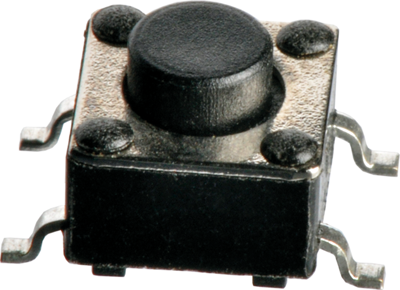

Short-stroke pushbutton, 1 Form A (N/O), 50 mA/12 VDC, unlit , actuator (black, L 3.4 mm), 1.56 N, SMD, TP32N16009
Unit Price (€ / pc.)
0.2190 € *
Available: 4,291 pcs.
Leadtime: On Request **
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
25 pcs.
0.2190 €
50 pcs.
0.1904 €
100 pcs.
0.1607 €
500 pcs.
0.1452 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMT tactile switches, type GREATECS TP32.
Single-pole NO; Switching voltage: 12 VDC. Switching current: 50 mA. Actuating travel: 0.25 mm. Contact resistance: max. 100 mohm. Insulation resistance: min. 100 Mohm. Actuating force: approx. 1.57 N (160 gf, ±50 gf), Operating temperatures: –20 to +85 °C. Dimensions: M 3.4 mm (TP32D16009 3.3 mm), L 9.0 mm.
Technical attributes (type, dimension H): TP32N16009, 4.3 mm
Technical specifications
| Connection | SMD | |
| illuminated | No | |
| actuating force | 1,56 N | |
| Width | 6 mm | |
| Actuator colour | schwarz | |
| Height | 5.9 mm | |
| Contact material | versilbert | |
| Length | 12 mm | |
| Latching switching function | 1 Schließer | |
| Breaking capacity | 50 mA/12 VDC | |
| actuator length | 3.4 mm |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
