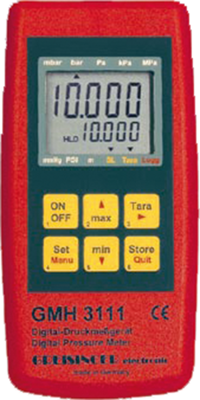

GMH3111-00-GE | Greisinger

For operation with the pressure sensors described below, for any measuring range from 2.5 mbar to 400 bar, e.g. overpressure, low pressure, differential pressure, absolute pressure, air pressure/barometric pressure and fill level (water) measurement, with TARE/HOLD function, MIN/MAX value display

Display: two 4.5-digit LCDs (height: 12.4 mm or 7.0 mm)

Display range: - 19999 to +99999

Pressure units: mbar, bar, Pa, kPa, MPa, mmHg, PSI and m

Tolerance: ±0.1% FS, ±1 digit, automatic detection and definition of overload and resolution by means of the connected sensor

Measuring cycle: 4 measurements/s

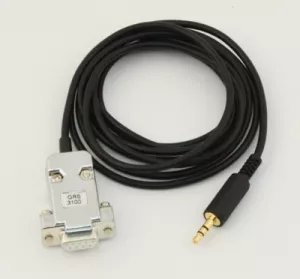

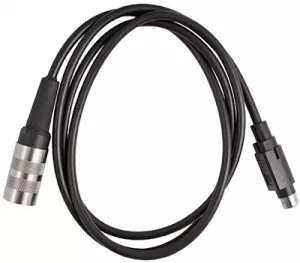

Digital sensor connection: 6-pole mini DIN socket, bus-capable with separately available RS-232/USB port

Operating temperatures: 0 to +50 °C

Dimensions: 142 x 71 x 26 mm

Weight: 150 g

Operation: 9.0-V battery
