MSD--1/1.5BRE-00-00-GE | Greisinger

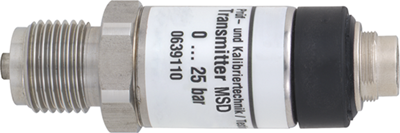

Stainless steel pressure sensors, type Greisinger MSD

For device types GMH 31.. with MSD - K31 connecting cable, for device types GMH 51.. with MSD - K51 connecting cable, suitable for air/water and aggressive gases/liquids

Pressure fitting: G1/2B thread. Cable connection: M12 panel plug

Electronic system: integrated amplifier and sensor data memory, molded

Tolerance: ±0.2 % FS (hysteresis and linearity), ±0.2 % FS/K (TK for zero point and gradient)

Reaction time: 1.0 MS

Measured material temperature: - 25 to +100 °C (total range: 0 to 70 °C)

Operating temperatures: - 20 to +80 °C. Housing: CrNi steel

Degree of protection: IP 67.

Dimensions: L 88.5, D 27 mm

Weight: 220 g. The connecting cable is available on separate order.

For measuring relative pressure, type MSD

Tech. properties (type, measuring range (rel.), overload (rel.), resolution):

MSD - 1/1.5 BRE, - 1000 to +1500 mb, max. 10 bar, 1.0 mb
