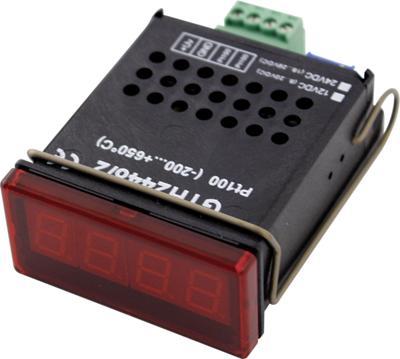

GTH 2448/3, for Pt 100, - 60 to +199 °C
digital thermometer for Pt 100-2 wire probes. With 3 1/2-digit LED display, 10 mm height. Measuring ranges: in accordance with the table. Resolution: 1.0 °C, type GTH 2448/3 0.1 °C. Tolerance: NiCr-Ni ±1.0 % from - 20 to +550 °C, or +920 to +1150 °C, ±1.5% from +550 to +920 °C, Pt 100 ±0.5 °C. Sampling rate: approx. 3/s. Operating temperatures: 0 to +50 °C. Operating mode: 8.0 to 29 VDC or 8.0 to 27 VAC, adjustable by means of solder bridge. Current consumption: max. 20 mA. Housing: glass fiber-reinforced Noryl. Dimensions: bezel 24 x 48 mm. Mounting depth with screw/plug-in terminals: approx. 65 mm. Mounting cutout: 21.7 x 45.0 mm. Front-panel thickness: 1.0 to approx. 10 mm. Mounting: with stainless steel spring clamp. Degree of protection: IP 54 at the front
