BPE1305S-02A | GREWUS

SMD signal transmitter, 75 dB, 5 VDC, 5 mA, black, BPE1305S-02A

Order No.: 36M380
EAN: 4099891541750
MPN:
BPE1305S-02A
GREWUS

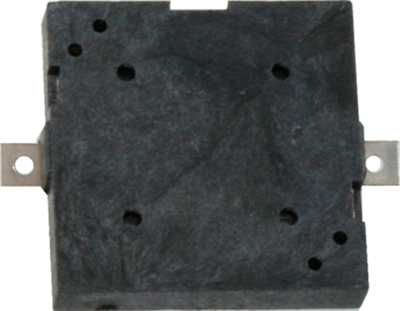

BPE1305S-02A GREWUS Acoustic Signal Transmitters Image 1
BPE1305S-02A GREWUS Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
0.7378 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
0.7378 €

SMD buzzers, type GREWUS BPE1305S-02A.

Operating voltage: 1.0 to 25 V. Rated voltage: 5.0 V. Current consumption: max. 5.0 mA. Frequency: 4100 Hz (±500 Hz). Sound pressure: min. 75 dB(A). Capacitance 16 nF (±30 %). Operating temperatures: –40 to +105 °C. Color: black. Weight: 0.5 g.

Type: BPE1305S–02A, buzzer

Technical specifications
Version SMD signal transmitter
Colour black
Rated current 5 mA
Resonance frequency 4100 Hz
Sound pressure level 75 db
Voltage 5 VDC
Logistics
Country of origin CN
Customs tariff number 85318040
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
