3570 1331 241 | Günther

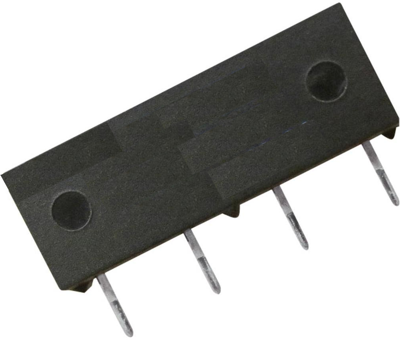

Reed relay, 24 V (DC), 1 Form A (N/O), SIP, 10 W, 3570 1331 241
Unit Price (€ / pc.)
2.9393 € *
Available: 187 pcs.
Leadtime: 6 Weeks **
Total Price:
2.94 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9393 €
25 pcs.
2.4990 €
100 pcs.
2.3205 €
250 pcs.
2.2015 €
1000 pcs.
2.0111 €
*incl. VAT plus shipping costs
**Subject to prior sale
Reed relays, Günther 3570 1331.
For PCB connection
Grid: 2.54 mm (SiL)
Contact type: 1 x NO
Rated/response/release/operating voltage max.: 5.0/3.8/0.8/15 VDC, 12/9.0/1.5/30 VDC, 24/18/2.0/40 VDC
Dielectric strength coil/contact: 1000 VDC
Switching voltage: max. 100 V AC/DC
Switching current: max. 0.5 A
Limiting value of mean on-state current: max. 1.0 A
Breaking capacity: max. 10 W/10 VA
Contact resistance: max. 150 mohm
Dielectric strength: min. 200 VDC
Operating temperatures: - 35 to +80 °C.
Without suppressor diode.
Technical specifications
| Connection | Leiterplattenanschluss | |
| Design | SIP | |
| Contact type | 1 Schließer | |
| Grid | 2.54 mm | |
| Breaking capacity | 10 W | |
| Switching Voltage (AC) | 100 V | |
| Switching Voltage (DC) | 150 V | |
| switching current | 500 mA | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 2 kΩ |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85364110 |
| Original Packaging | Stange mit 25 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
