USG-3044 | GW Instek
RF SIGNAL GENERATOR USG-3044
Unit Price (€ / pc.)
618.80 € *
Available: 0 pcs.
Leadtime: On Request **

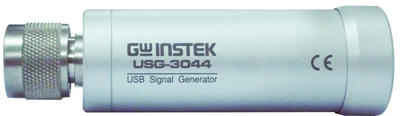

USB-Controlled RF signal generator, USG-3044, GW Instek
GW Instek USG-3044 USB-Controlled RF signal generator, 3.0 GHz to 4.4 GHz. GW Instek USG-Series RF signal generator, which comes with five models to meet users’ requirements and is a pocket-sized, and USB interface compatible RF signal generator with the frequency range from 35MHz to 4400MHz. The USG-Series provides continuous wave (CW) signal outputs without any signal modulation function. The built-in electronic attenuator of the USG-Series allows an adjustable power range from -30dBm to 0dBm. The USG-Series has several operational modes including fixed frequency, frequency sweep, frequency hopping, and power sweep. The USB-Series RF signal generator, with the frequency bandwidth limitation, provides lower harmonic output performance.
Technical specifications
| Frequency range | 3 GHz-4.4 GHz | |
| Interfaces | USB | |
| Signal generator | RF | |
| Waveforms | Sinus |
Download
Logistics
| Country of origin | CN |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
