GDM-360 | GW Instek
TRMS digital multimeter GDM-360, 10 A(DC), 10 A(AC), 600 VDC, 750 VAC, 40 nF to 4000 µF, CAT III 1000 V, CAT IV 600 V
Multimeter, GDM-360, GW Instek

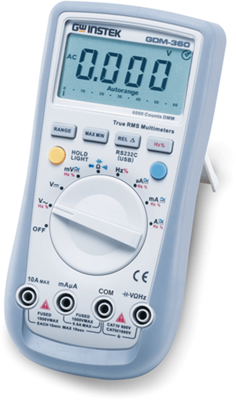

GW Instek GDM-360 6000 Counts Handheld Digital Multimeter with True RMS Measurement and RS-232C Interface. The GDM-300/400 Series Hand Held DMM are a compact, high precision, battery operated multimeter series designed to meet most of the daily needs for design engineers as well as service engineers. The GDM-300/400 series design is driven by mobile-oriented features, such as automatic power down to preserve battery life, a large backlight display for crisp viewing, a rotary selector switch and clear-cut push buttons to ease operation. The basic functions match the depth of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Auto ranging, Duty cycle, and Relative mode. These compact, reliable, and economical devices are ideal for any engineer.
| Anzeige Digits | 6000 | |
| Ausführung | Digital-Multimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 40 nF bis 4000 µF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 60 MΩ | |
| Spannungsmessbereich (AC) | 750 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT III 1000 V, CAT IV 600 V |
| Ursprungsland | CN |
| Zolltarifnummer | 90303900 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
