GDM-531 | GW Instek
Digital multimeter GDM-531, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 9.999 nF to 9.999 mF, CAT III 600 V
Unit Price (€ / pc.)
34.51 € *
Available: 0 pcs.
Leadtime: On Request **

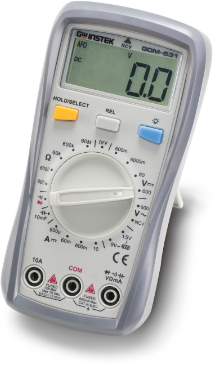

Digital multimeter, GDM-531, GW Instek
The GDM-531 hand-held DMM is a compact, high precision, battery operated multimeter designed to meet the application requirements of service engineers. Its design is driven by mobile-oriented features: automatic power-off to preserve battery life, a large backlight display for crisp viewing, a rotary selector and push buttons to ease operation, and NCV (Non-Contact Voltage) function for outdoor use.
Technical specifications
| Display Digits | 6000 | |
| Version | digital multimeter | |
| TRMS possible | No | |
| Capacity range | 9.999 nF to 9.999 mF | |
| max. measured current value (AC) | 10 A | |
| max. measured current value (DC) | 10 A | |
| max. resistance range | 60 MΩ | |
| max. voltage measuring range (AC) | 600 V | |
| max. voltage measuring range (DC) | 600 V | |
| Surge voltage category | CAT III 600 V |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 90303370 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
