2409-1520-80-07 | HÄWA

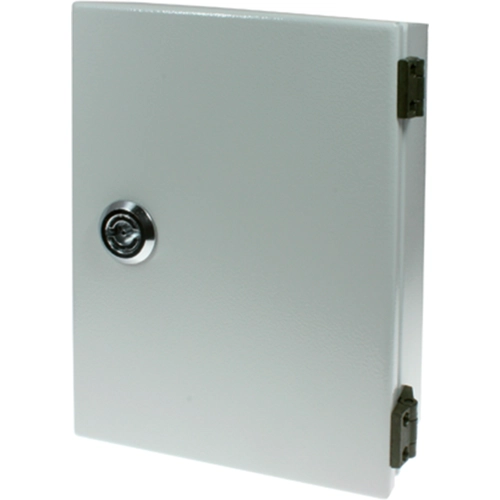

Wall enclosure, (H x W x D) 200 x 150 x 80 mm, IP55, sheet steel, 2409-1520-80-07
Unit Price (€ / pc.)
50.4917 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
50.49 € *
Price list
Quantity
Price per unit*
1 pcs.
50.4917 €
5 pcs.
45.4461 €
10 pcs.
40.9003 €
*incl. VAT plus shipping costs
**Subject to prior sale
Control cabinets made of steel sheet, type Häwa SN-Mini 2409-.
Rugged design made of 1.5 mm steel sheet; Cover: flush with the enclosure. Opening angle: 120 degrees. Lock: 1 rotary 8.0 mm square bar lock bolt. Sealing: special sealing foamed into the lid. Degree of protection: IP 55. Ground terminals inside the cabinet and on the lid. Finish: powder coating, light-gray RAL 7035 (can be painted). Version: ready for mounting rails, equipment rails or mounting panel. Complete with lid, hinge and rotary bar lock.
Technical attributes (type, outer dimension, HP quantity): 2409-1520-80-07, W 150, H 200, D 80 mm, 66 HP
Technical specifications
| Ausführung | Wandgehäuse | |
| Breite | 150 mm | |
| Höhe | 200 mm | |
| Material | Stahlblech | |
| Schutzart (IP) | IP55 | |
| Tiefe | 80 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85381000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
