2409-3030-12-07 | HÄWA

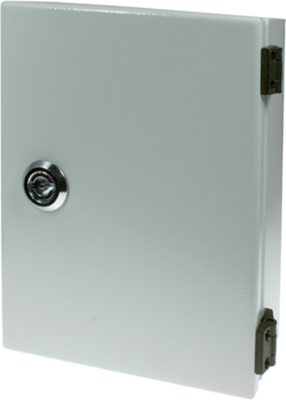

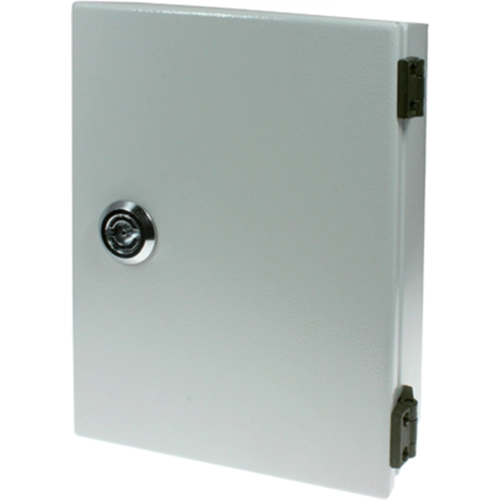

Wall enclosure, (H x W x D) 300 x 300 x 120 mm, IP55, sheet steel, 2409-3030-12-07
Unit Price (€ / pc.)
90.7970 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
90.80 € *
Price list
Quantity
Price per unit*
1 pcs.
90.7970 €
5 pcs.
81.7054 €
10 pcs.
73.5420 €
*incl. VAT plus shipping costs
**Subject to prior sale
Control cabinets made of steel sheet, type Häwa SN-Mini 2409-.
Rugged design made of 1.5 mm steel sheet; Cover: flush with the enclosure. Opening angle: 120 degrees. Lock: 1 rotary 8.0 mm square bar lock bolt. Sealing: special sealing foamed into the lid. Degree of protection: IP 55. Ground terminals inside the cabinet and on the lid. Finish: powder coating, light-gray RAL 7035 (can be painted). Version: ready for mounting rails, equipment rails or mounting panel. Complete with lid, hinge and rotary bar lock.
Technical attributes (type, outer dimension, HP quantity): 2409-3030-12-07, W 300, H 300, D 120 mm, 106 HP
Technical specifications
| Version | wall enclosure | |
| Width | 300 mm | |
| Height | 300 mm | |
| Material | sheet steel | |
| Degree of protection (IP) | IP55 | |
| Depth | 120 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
