1455L1601RD | Hammond

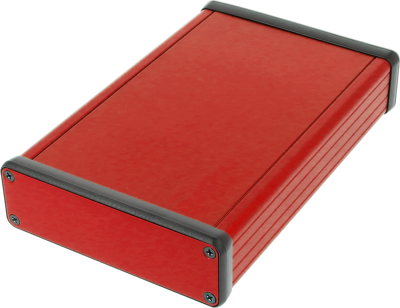

Aluminum enclosure, (L x W x H) 160 x 103 x 31 mm, red, IP54, 1455L1601RD
Unit Price (€ / pc.)
35.9142 € *
Available: 0 pcs.
Available in 7 Days: 5 pcs.
Leadtime: 2 Weeks **
Total Price:
35.91 € *
Price list
Quantity
Price per unit*
1 pcs.
35.9142 €
10 pcs.
34.1173 €
50 pcs.
30.7139 €
100 pcs.
27.6437 €
*incl. VAT plus shipping costs
**Subject to prior sale
Enclosure, 1455L1601RD, Hammond
Features
- Designed to house P.C. boards or for equipment interfacing.
- Sized for standard Eurocards
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.

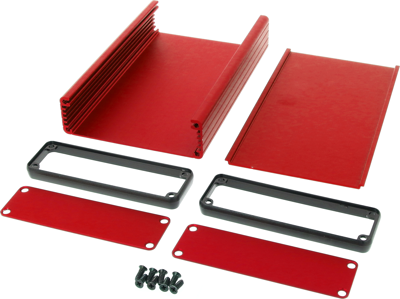

- Extruded body includes a slide removable “belly” plate - except in smaller sizes “A” through “D”
Technical specifications
| Breite | 103 mm | |
| Farbe | rot | |
| Höhe | 31 mm | |
| Länge | 160 mm | |
| Material | Aluminium | |
| Schutzart (IP) | IP54 |
Download
Logistics
| Ursprungsland | CA |
| Zolltarifnummer | 76169990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
