1455R2202BK | Hammond

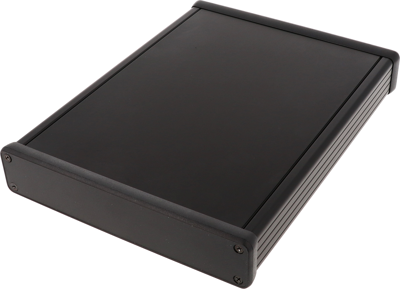

Aluminum enclosure, (L x W x H) 220 x 165 x 31 mm, black (RAL 9005), IP54, 1455R2202BK
Unit Price (€ / pc.)
33.1415 € *
Available: 0 pcs.
Available in 7 Days: 24 pcs.
Leadtime: 2 Weeks **
Total Price:
33.14 € *
Price list
Quantity
Price per unit*
1 pcs.
33.1415 €
10 pcs.
31.4755 €
50 pcs.
28.3220 €
100 pcs.
25.4898 €
*incl. VAT plus shipping costs
**Subject to prior sale
Enclosure, 1455R2202BK, Hammond
Features
- Designed to house P.C. boards or for equipment interfacing.
- Sized for standard Eurocards
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
- Extruded body includes a slide removable “belly” plate - except in smaller sizes “A” through “D”
Technical specifications
| Breite | 165 mm | |
| Farbe | schwarz | |
| Höhe | 31 mm | |
| Länge | 220 mm | |
| Material | Aluminium | |
| RAL-Farbnummer | 9005 | |
| Schutzart (IP) | IP54 |
Download
Logistics
| Ursprungsland | CA |
| Zolltarifnummer | 76169990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
