1455U1601BK | Hammond

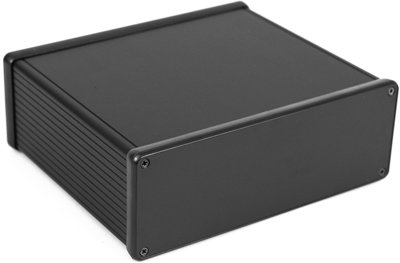

Aluminum enclosure, (L x W x H) 160 x 191 x 66 mm, black (RAL 9004), IP54, 1455U1601BK
Unit Price (€ / pc.)
47.9570 € *
Available: 0 pcs.
Available in 7 Days: 9 pcs.
Leadtime: 1 Week **
Total Price:
47.96 € *
Price list
Quantity
Price per unit*
1 pcs.
47.9570 €
10 pcs.
43.1494 €
*incl. VAT plus shipping costs
**Subject to prior sale
Aluminum enclosure, 1455U1601BK, Hammond
Extruded aluminum enclosure with anodize finish, sliding belly plates with plastic or metal end plate.
Features
- Sized for standard Eurocards
- Extruded body includes a slide removable “belly” plate
- Designed to house P.C. boards or for equipment interfacing
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body
Technical specifications
| Breite | 191 mm | |
| Farbe | schwarz | |
| Höhe | 66 mm | |
| Länge | 160 mm | |
| Material | Aluminium | |
| RAL-Farbnummer | 9004 | |
| Schutzart (IP) | IP54 |
Download
Logistics
| Ursprungsland | CA |
| Zolltarifnummer | 76169990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
