1554RGY | Hammond

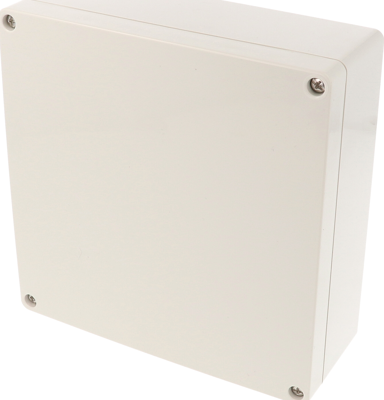

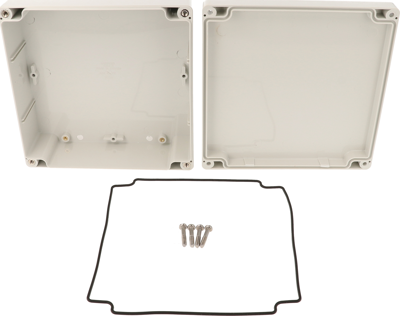

ABS enclosure, (L x W x H) 160 x 160 x 61 mm, light gray (RAL 7035), IP66, 1554RGY
Unit Price (€ / pc.)
22.1102 € *
Available: 0 pcs.
Available in 7 Days: 956 pcs.
Leadtime: On Request **
Total Price:
22.11 € *
Price list
Quantity
Price per unit*
1 pcs.
22.1102 €
10 pcs.
21.0035 €
50 pcs.
18.9210 €
100 pcs.
17.0289 €
*incl. VAT plus shipping costs
**Subject to prior sale
Enclosure, 1554RGY, Hammond
Features
- Ideally suited for mounting printed circuit boards or DIN rail mounted components (see photo features below for details).
- ABS Versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use.
- Polycarbonate versions are UV stabilized for outdoor use. Gray polycarb carries a UL94- 5VA rating, while clear and smoked lids carry a UL94V-0 rating.
- Polycarbonate versions are cUL and UL 508A listed (File # E65324). ABS plastic versions are not UL listed.
- Enclosure color is a light gray (RAL 7035).
Technical specifications
| Width | 160 mm | |
| Colour | light gray | |
| Height | 61 mm | |
| Length | 160 mm | |
| Material | ABS | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | CA |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
