1555BGY | Hammond

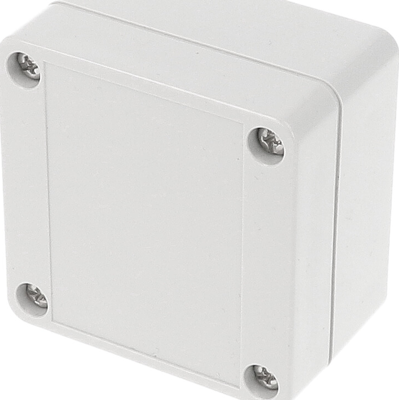

ABS enclosure, (L x W x H) 66 x 66 x 41 mm, light gray (RAL 7035), IP66, 1555BGY
Unit Price (€ / pc.)
9.9365 € *
Available: 0 pcs.
Available in 7 Days: 48 pcs.
Leadtime: On Request **
Total Price:
9.94 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9365 €
10 pcs.
9.4367 €
50 pcs.
8.4966 €
100 pcs.
7.6398 €
*incl. VAT plus shipping costs
**Subject to prior sale
Enclosure, 1555BGY, Hammond
Features
- Ideally suited for mounting printed circuit boards or DIN rail mounted components
- ABS Versions are molded from general purpose material which carries a flammability rating of UL94-HB.
- Polycarbonate versions are UV stabilized for outdoor use. Gray polycarb carries a UL94- 5VA rating
- Enclosure color is a light gray (RAL 7035).
Technical specifications
| Breite | 66 mm | |
| Farbe | lichtgrau | |
| Höhe | 41 mm | |
| Länge | 66 mm | |
| Material | ABS | |
| RAL-Farbnummer | 7035 | |
| Schutzart (IP) | IP66 |
Download
Logistics
| Ursprungsland | CA |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
