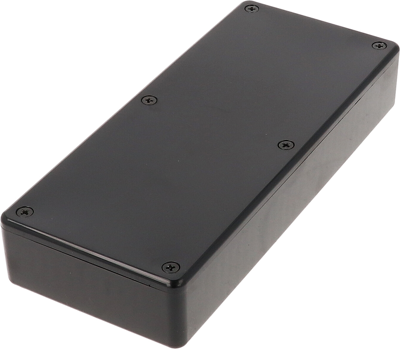

1591HBK | Hammond

ABS enclosure, (L x W x H) 166 x 71 x 29 mm, black (RAL 9005), IP54, 1591HBK

Order No.: 61H3003
EAN: 4099889535976
MPN:
1591HBK
Series: 1591
1591HBK Hammond General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
8.9607 € *
Available: 0 pcs.
Available in 7 Days: 115 pcs.
Leadtime: 2 Weeks **
Total Price:
8.96 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9607 €
10 pcs.
8.5085 €
50 pcs.
7.6636 €
100 pcs.
6.8901 €
*incl. VAT plus shipping costs
**Subject to prior sale

Multipurpose Enclosure, 1591HBK, Hammond

Features

  • Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right).
  • Lap joint construction provides protection against access of dust and splashing water. Designed to meet IP54
  • Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
  • Black enclosures include black screws, while all others include standard nickel finish screws
Technical specifications
Breite 71 mm
Farbe schwarz
Höhe 29 mm
Länge 166 mm
Material ABS
RAL-Farbnummer 9005
Schutzart (IP) IP54
Logistics
Ursprungsland CA
Zolltarifnummer 39269097
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
