09350120312 | Harting

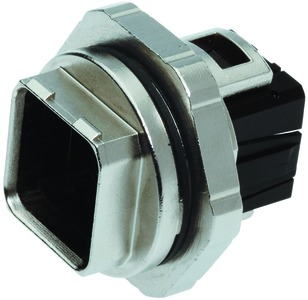

Surface mount housing, for modular sockets, 09350120312

Order No.: 44F3345
EAN: 4099889826036
MPN:
09350120312
09 35 012 0312
Series: Han PushPull
09350120312 Harting Accessories for Network Connectors
Image may differ
Unit Price (€ / pc.)
15.1963 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
15.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
15.1963 €

Han PushPull

Han PushPull

The technical characteristics of 09350120312 from Harting at a glance

  • Protection class (IP, mounted) IP67 - IP65
  • Interlock available Ja
  • Housing material Zinc die casting
  • Angle contact/conductor connection 180° (horizontal)
  • Product type description Han PushPull PFT metal circular HIFF
  • max. Ambient temperature 70 °C
  • max. Operating temperature 70 °C
  • min. Ambient temperature -40 °C
  • min. Operating temperature -40 °C
  • Locking type Push Pull
  • Flammability class of the insulating material (based on UL 94) V0
  • Description Han PushPull PFT metal circular HIFF
Technical specifications
Geeignet für Modulare Buchsen
Zubehörart Anbaugehäuse
Logistics
Ursprungsland DE
Zolltarifnummer 85389099
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
