09455450043 | Harting

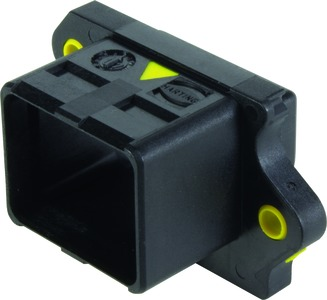

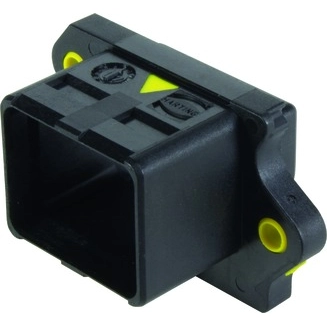

Bulkhead housing with seal, black, for Push-Pull connector, 09455450043
Unit Price (€ / pc.)
2.2015 € *
Available: 0 pcs.
Leadtime: 1 Week **
HARTING PushPull
HARTING PushPull
The technical characteristics of 09455450043 from Harting at a glance
- Protection class (IP, mounted) IP67 - IP65
- Angle contact/conductor connection 180° (horizontal)
- Housing material Plastic
- Interlock available Ja
- Product type description PushPull V4, compact housing w/o clip
- min. Ambient temperature -40 °C
- min. Operating temperature -40 °C
- max. Operating temperature 70 °C
- max. Ambient temperature 70 °C
- Locking type Push Pull
- Description PushPull V4, compact housing w/o clip
- Flammability class of the insulating material (based on UL 94) V0
Technical specifications
| Colour | black | |
| Suitable for | Push-Pull connector | |
| Assembly | panel mounting | |
| Accessory Type | bulkhead housing with seal |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
