09120022653 | Harting

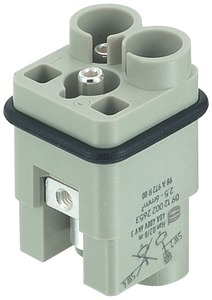

Pin contact insert, 3A, 2 pole, equipped, axial screw connection, with PE contact, 09120022653
Unit Price (€ / pc.)
47.6952 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Contact insert, 09 12 002 2653, Harting
Insert, Axial screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: 3 A, Contacts: 2, Conductor cross-section: 2.5-6 mm², Copper alloy, Silver plated
Technical Data
- Contact design: Pin Insert
- Material: Thermoplastic
- Shell size: 3A
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 40 A
- Rated voltage: 400 V
- PE contact: Yes
Technical specifications
| Ausführung | Stifteinsatz | |
| Bestückung | bestückt | |
| Gehäusegröße | 3A | |
| Kontaktanschluss | Axial-Schraubanschluss | |
| PE-Kontakt | Yes | |
| Polzahl | 2-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
