09120022754 | Harting

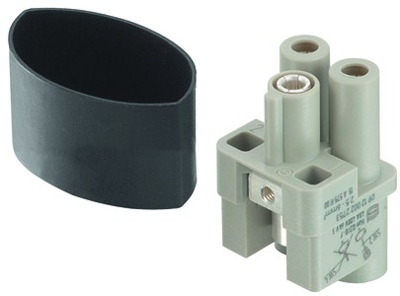

Socket contact insert, 3A, 2 pole, equipped, axial screw connection, with PE contact, 09120022754
Unit Price (€ / pc.)
49.0280 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Contact insert, 09 12 002 2754, Harting
Insert, Axial screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: 3 A, Contacts: 2, Conductor cross-section: 2.5-6 mm², Copper alloy, Silver plated
Technical Data
- Contact design: Socket Insert
- Material: Thermoplastic
- Shell size: 3A
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 40 A
- Rated voltage: 830 V
- PE contact: Yes
Technical specifications
| Version | socket insert | |
| Additional parts | equipped | |
| Shell size | 3A | |
| Contact connection | axial screw connection | |
| PE contact | Yes | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
