09120023152 | Harting

Socket contact insert, 3A, 2 pole, unequipped, crimp connection, with PE contact, 09120023152

Order No.: 44F0234
EAN: 4099889770766
MPN:
09120023152
09 12 002 3152
Series: Han Q
Harting

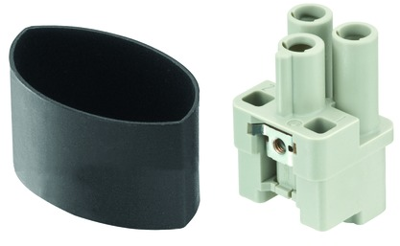

09120023152 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
11.7453 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
11.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.7453 €

Contact insert, 09 12 002 3152, Harting

Insert, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: 3 A, Contacts: 2, Conductor cross-section: 1.5-10 mm²

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 3A
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 40 A
  • Rated voltage: 830 V
  • PE contact: Yes
Technical specifications
Version socket insert
Additional parts unequipped
Shell size 3A
Contact connection crimp connection
PE contact Yes
Pin number 2 pole
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
