09120053001 | Harting

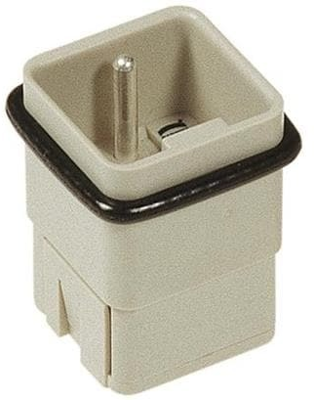

Pin contact insert, 3A, 5 pole, unequipped, crimp connection, with PE contact, 09120053001
Unit Price (€ / pc.)
10.1745 € *
Available: 11 pcs.
Leadtime: 4 Weeks **
Total Price:
10.17 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1745 €
10 pcs.
8.9488 €
50 pcs.
8.3538 €
150 pcs.
7.9730 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contact inserts, bare, Type Han Q 0912.
5-pole + PE. With control/power contacts. For housing size 3 A; Rated current: 16 A. Rated voltage: 230/400 V. Test voltage: 2.0 kV. Degree of soiling: 3. Material: polycarbonate. Combustibility compliant with UL V-0. Insertion cycles: min. 500. Coding is possible by inserting a contact with coding pin in place of the female contact. This male contact may not be connected. Corresponding crimp contacts are described at the end of the series. Please order separately.
Type: 0053001, 5–pole, male
Technical specifications
| Version | Stifteinsatz | |
| Additional parts | unbestückt | |
| Shell size | 3A | |
| Contact connection | Crimpanschluss | |
| PE contact | Yes | |
| Pin number | 5-polig |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
