09120073001 | Harting

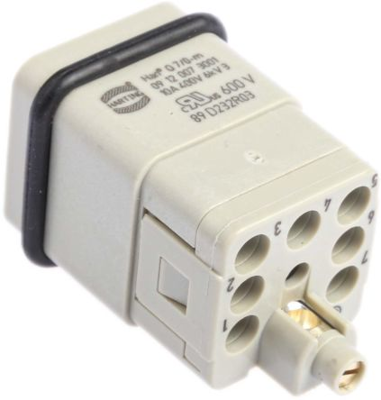

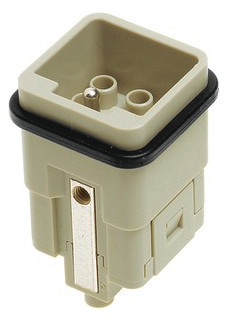

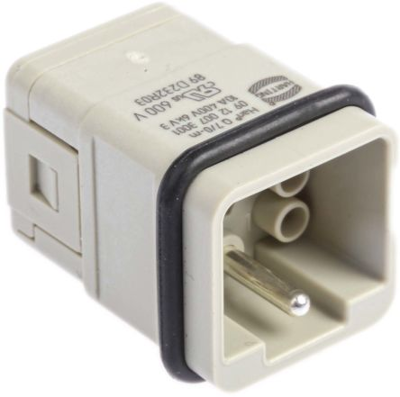

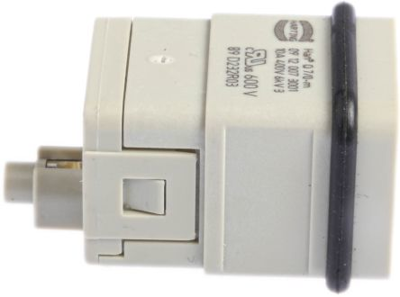

Pin contact insert, 3A, 7 pole, unequipped, crimp connection, with PE contact, 09120073001
Unit Price (€ / pc.)
12.9472 € *
Available: 84 pcs.
Leadtime: 10 Weeks **
Total Price:
12.95 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9472 €
10 pcs.
11.3764 €
50 pcs.
10.6148 €
150 pcs.
10.1388 €
500 pcs.
9.6271 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contact inserts, bare, Type Han Q 0912.
7-pole + PE, For mounting of power contacts for series Han D, For housing size 3 A. Rated voltage / current / surge voltage 400 V/10 A/6.0 kV; Degree of soiling: 3. Material: polycarbonate. Combustibility to UL 94V-0. Insertion cycles: at least 500. Coding: 6 positions via coding pin. Corresponding crimp contacts are described at the end of the series and available on separate order.
Type: 0073001, 7–pole, male
Technical specifications
| Version | pin insert | |
| Additional parts | unequipped | |
| Shell size | 3A | |
| Contact connection | crimp connection | |
| PE contact | Yes | |
| Pin number | 7 pole |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
