09140022647 | Harting

Pin contact insert, 2 pole, equipped, axial screw connection, 09140022647

Order No.: 44F0531
EAN: 4099889771947
MPN:
09140022647
09 14 002 2647
Series: Han Modular
09140022647 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
30.6544 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
30.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
30.6544 €

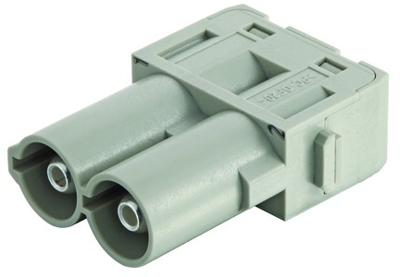

Contact insert, 09 14 002 2647, Harting

Han 70 A module, Axial screw termination, Male, Contacts: 2, Conductor cross-section: 14-22 mm², Rated current: 70 A, Polycarbonate (PC), RAL 7032 (pebble grey), Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 70 A
  • Rated voltage: 1000 V
  • PE contact: No
Technical specifications
Ausführung Stifteinsatz
Bestückung bestückt
Kontaktanschluss Axial-Schraubanschluss
PE-Kontakt No
Polzahl 2-polig
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
