09140123101 | Harting
Socket contact insert, DD, 12 pole, unequipped, crimp connection, 09140123101
Unit Price (€ / pc.)
4.1888 € *
Available: 7 pcs.
Leadtime: 9 Weeks **
Total Price:
4.19 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1888 €
10 pcs.
3.6890 €
100 pcs.
3.2487 €
250 pcs.
3.1297 €
1000 pcs.
2.9036 €
*incl. VAT plus shipping costs
**Subject to prior sale

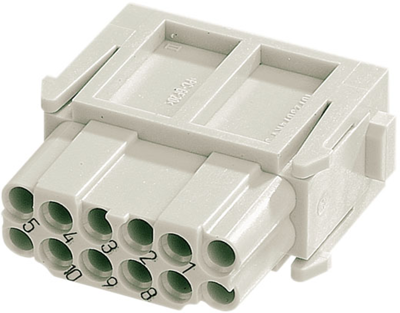

Contact blocks for Han DD modules, Type 0914012.
For 12 male or female contacts; Rated current: 10 A. Rated voltage: 250 V (600 V to UL/CSA). Rated surge voltage: 4.0 kV. Degree of soiling: 3. Material: polycarbonate, combustibility to UL 94 V-0. Contacts are available on separate order.
Type: 3101, female insert
Technical specifications
| Version | socket insert | |
| Additional parts | unequipped | |
| Shell size | DD | |
| Contact connection | crimp connection | |
| PE contact | No | |
| Pin number | 12 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
