Name: Pin contact insert, 6B, 24 pole, unequipped, crimp connection, with PE contact, 09160243001
Brand: Harting
SKU: 42F1950
Price: 22.66 EUR
Availability: OutOfStock

Pin contact insert, 6B, 24 pole, unequipped, crimp connection, with PE contact, 09160243001

Order No.: 42F1950

EAN: 4099889769647

MPN:

09160243001

09 16 024 3001

Series: Han DD

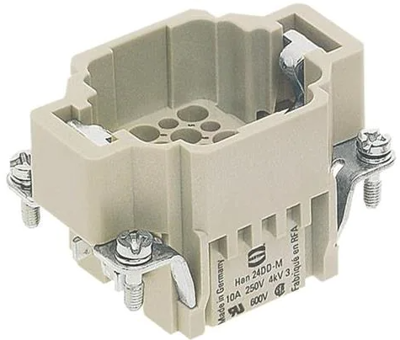

09160243001 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Version Stifteinsatz

Shell size 6B

Additional parts unbestückt

Contact connection Crimpanschluss

Pin number 24-polig

Ordering Information:

Lieferung ohne Kontakte, bitte separat bestellen

Show 12 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

22.6576 € *

Available: 0 pcs.

Leadtime: 15 Weeks **

Total Price:

22.66 € *

Price list

Quantity

Price per unit*

1 pcs.

22.6576 €

10 pcs.

20.8369 €

25 pcs.

18.9686 €

50 pcs.

17.4454 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Heavy-duty connectors, 09160243001, Harting

Insert, Crimp termination, Male, RAL 7032 (pebble grey), Rated current: ‌10 A, Size: 6 B, Contacts: 24, Conductor cross-section: 0.14 - 2.5 mm²

Technical specifications

	Version	Stifteinsatz
	Additional parts	unbestückt
	Shell size	6B
	Contact connection	Crimpanschluss
	PE contact	Yes
	Pin number	24-polig

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

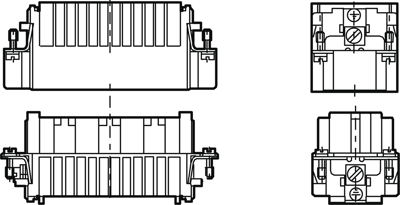

Maßzeichnung - EN Maßzeichnung
