Name: Pin contact insert, 10B, 42 pole, unequipped, crimp connection, with PE contact, 09160423001
Brand: Harting
SKU: 42F1954
Price: 21.98 EUR
Availability: InStock

Pin contact insert, 10B, 42 pole, unequipped, crimp connection, with PE contact, 09160423001

Order No.: 42F1954

EAN: 4099889769661

MPN:

09160423001

09 16 042 3001

Series: Han DD

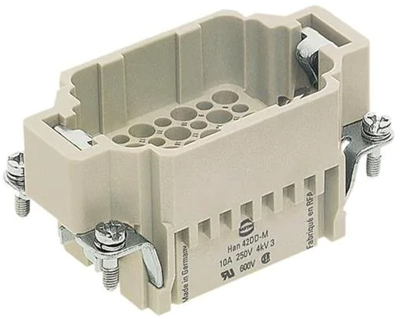

09160423001 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Ausführung Stifteinsatz

Gehäusegröße 10B

Bestückung unbestückt

Kontaktanschluss Crimpanschluss

Polzahl 42-polig

Ordering Information:

Lieferung ohne Kontakte, bitte separat bestellen

Show 12 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

21.9793 € *

Available: 18 pcs.

Leadtime: 10 Weeks **

Total Price:

21.98 € *

Price list

Quantity

Price per unit*

1 pcs.

21.9793 €

5 pcs.

20.6584 €

15 pcs.

19.8730 €

50 pcs.

18.9805 €

150 pcs.

18.2070 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Heavy-duty connectors, 09160423001, Harting

Insert, Crimp termination, Male, RAL 7032 (pebble grey), Rated current: ‌10 A, Size: 10 B, Contacts: 42, Conductor cross-section: 0.14 - 2.5 mm²

Technical specifications

	Ausführung	Stifteinsatz
	Bestückung	unbestückt
	Gehäusegröße	10B
	Kontaktanschluss	Crimpanschluss
	PE-Kontakt	Yes
	Polzahl	42-polig

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

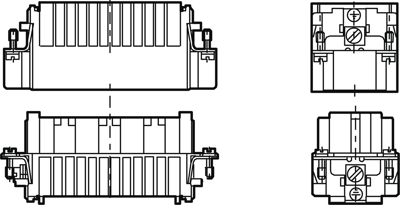

Maßzeichnung - EN Maßzeichnung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	RO
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes

Accessory

09150006104 Harting Crimp Contacts — Image may differ

Pin contact, 0.14-0.37 mm², AWG 26-22, crimp connection, silver-plated, 09150006104
