09160423101 | Harting

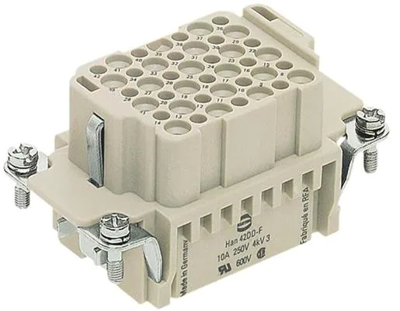

Socket contact insert, 10B, 42 pole, unequipped, crimp connection, with PE contact, 09160423101
Unit Price (€ / pc.)
21.9674 € *
Available: 17 pcs.
Leadtime: 15 Weeks **
Total Price:
21.97 € *
Price list
Quantity
Price per unit*
1 pcs.
21.9674 €
5 pcs.
20.6465 €
15 pcs.
19.8492 €
50 pcs.
18.9805 €
150 pcs.
18.1951 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heavy-duty connectors, Type Harting Han E/ES, HsB und DD.
Particularly rugged industrial version.
Contact inserts, bare, Type Harting Han DD 0916.
For 24-, 42-, 72- and 108-pole connectors, each + PE; Rated current: 10 A. Rated voltage: 250 V (600 V to UL/CSA. Rated surge voltage: 4.0 kV. Degree of soiling: 3. Crimp terminals: 0.14 to 2.5 mm². Corresponding crimp contacts are described at the end of the section on industrial plug series. Please order separately. Standards and regulations: IEC/DIN EN 61984.
Type: 0423101, 42p, female
Technical specifications
| Ausführung | Buchseneinsatz | |
| Bestückung | unbestückt | |
| Gehäusegröße | 10B | |
| Kontaktanschluss | Crimpanschluss | |
| PE-Kontakt | Yes | |
| Polzahl | 42-polig |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
