09160723101 | Harting

Name: Socket contact insert, 16B, 72 pole, unequipped, crimp connection, with PE contact, 09160723101
Brand: Harting
SKU: 42F1962
Price: 18.22 EUR
Availability: InStock

Socket contact insert, 16B, 72 pole, unequipped, crimp connection, with PE contact, 09160723101

Order No.: 42F1962

EAN: 4099889769692

MPN:

09160723101

09 16 072 3101

Series: Han DD

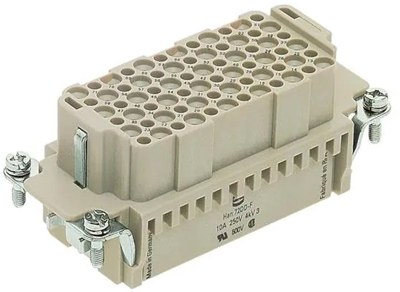

09160723101 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Version Buchseneinsatz

Shell size 16B

Additional parts unbestückt

Contact connection Crimpanschluss

Pin number 72-polig

Ordering Information:

Lieferung ohne Kontakte, bitte separat bestellen

Show 12 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

18.2189 € *

Available: 4 pcs.

Leadtime: 10 Weeks **

Total Price:

18.22 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Heavy-duty connectors, 09160723101, Harting

Insert, Crimp termination, Female, RAL 7032 (pebble grey), Rated current: ‌10 A, Size: 16 B, Contacts: 72, Conductor cross-section: 0.14 - 2.5 mm²

Technical specifications

	Version	Buchseneinsatz
	Additional parts	unbestückt
	Shell size	16B
	Contact connection	Crimpanschluss
	PE contact	Yes
	Pin number	72-polig

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

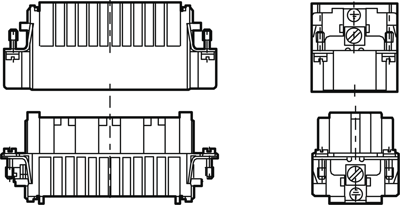

Maßzeichnung - EN Maßzeichnung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	RO
Customs tariff number	85366990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
