09161083101 | Harting

Name: Socket contact insert, 24B, 108 pole, unequipped, crimp connection, with PE contact, 09161083101
Brand: Harting
SKU: 42F1970
Price: 18.68 EUR
Availability: InStock

Socket contact insert, 24B, 108 pole, unequipped, crimp connection, with PE contact, 09161083101

Order No.: 42F1970

EAN: 4099889769715

MPN:

09161083101

09 16 108 3101

Series: Han DD

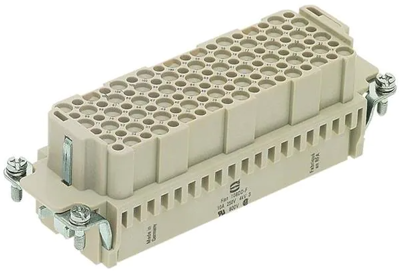

09161083101 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Ausführung Buchseneinsatz

Gehäusegröße 24B

Bestückung unbestückt

Kontaktanschluss Crimpanschluss

Polzahl 108-polig

Ordering Information:

Lieferung ohne Kontakte, bitte separat bestellen

Show 12 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

18.683 € *

Available: 5 pcs.

Leadtime: 15 Weeks **

Total Price:

18.68 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Heavy-duty connectors, 09161083101, Harting

Insert, Crimp termination, Female, RAL 7032 (pebble grey), Rated current: ‌10 A, Size: 24 B, Contacts: 108, Conductor cross-section: 0.14 - 2.5 mm²

Technical specifications

	Ausführung	Buchseneinsatz
	Bestückung	unbestückt
	Gehäusegröße	24B
	Kontaktanschluss	Crimpanschluss
	PE-Kontakt	Yes
	Polzahl	108-polig

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

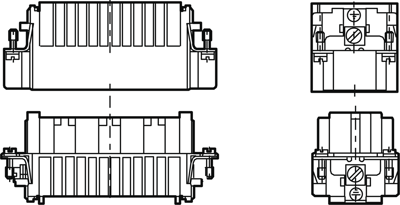

Maßzeichnung - EN Maßzeichnung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	RO
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
