09162083001 | Harting

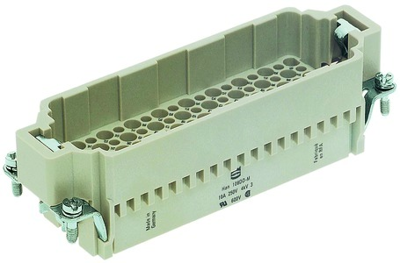

Pin contact insert, 24B, 108 pole, unequipped, crimp connection, with PE contact, 09162083001
Unit Price (€ / pc.)
29.0003 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Contact insert, 09 16 208 3001, Harting
Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 24 B, Contacts: 108, Conductor cross-section: 0.14-2.5 mm²
Technical Data
- Contact design: Pin Insert
- Material: Thermoplastic
- Shell size: 24B
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 10 A
- Rated voltage: 250 V
- PE contact: Yes
- Colour: gray
Technical specifications
| Ausführung | Stifteinsatz | |
| Bestückung | unbestückt | |
| Gehäusegröße | 24B | |
| Kontaktanschluss | Crimpanschluss | |
| PE-Kontakt | Yes | |
| Polzahl | 108-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
