09162083101 | Harting

Socket contact insert, 24B, 108 pole, unequipped, crimp connection, with PE contact, 09162083101

Order No.: 44F1009
EAN: 4099889773309
MPN:
09162083101
09 16 208 3101
Series: Han DD

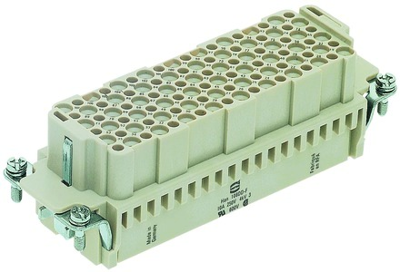

09162083101 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
25.6683 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
25.67 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
25.6683 €

Contact insert, 09 16 208 3101, Harting

Insert, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 24 B, Contacts: 108, Conductor cross-section: 0.14-2.5 mm²

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 24B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 10 A
  • Rated voltage: 250 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version Buchseneinsatz
Additional parts unbestückt
Shell size 24B
Contact connection Crimpanschluss
PE contact Yes
Pin number 108-polig
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
