09162423101 | Harting

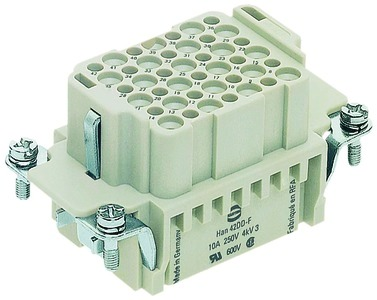

Socket contact insert, 10B, 42 pole, unequipped, crimp connection, with PE contact, 09162423101

Order No.: 44F1013
EAN: 4099889773347
MPN:
09162423101
09 16 242 3101
Series: Han DD
09162423101 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
22.8718 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
22.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
22.8718 €

Contact insert, 09 16 242 3101, Harting

Insert, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 10 B, Contacts: 42, Conductor cross-section: 0.14-2.5 mm²

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 10B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 10 A
  • Rated voltage: 250 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version Buchseneinsatz
Additional parts unbestückt
Shell size 10B
Contact connection Crimpanschluss
PE contact Yes
Pin number 42-polig
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
