09200042611 | Harting

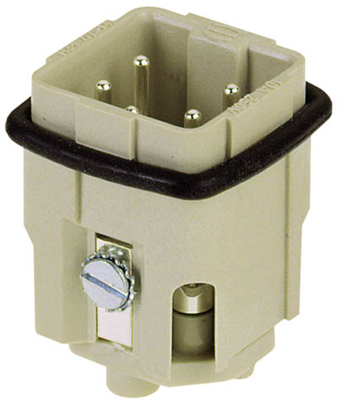

Pin contact insert, 3A, 4 pole, equipped, screw connection, with PE contact, 09200042611
Unit Price (€ / pc.)
14.3038 € *
Available: 45 pcs.
Leadtime: 10 Weeks **
Total Price:
14.30 € *
Price list
Quantity
Price per unit*
1 pcs.
14.3038 €
10 pcs.
12.5783 €
50 pcs.
11.7334 €
150 pcs.
11.2098 €
500 pcs.
10.6386 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contact insert, 09200042611, Harting
Insert, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 3 A, Contacts: 4, Conductor cross-section: 0.75 - 1.5 mm², Copper alloy, Silver plated
Technical specifications
| Version | pin insert | |
| Additional parts | equipped | |
| Shell size | 3A | |
| Contact connection | screw connection | |
| PE contact | Yes | |
| Pin number | 4 pole |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
