09210073031 | Harting

Name: Pin contact insert, 3A, 7 pole, unequipped, crimp connection, with PE contact, 09210073031
Brand: Harting
SKU: 42F8530
Price: 5.09 EUR
Availability: InStock

Pin contact insert, 3A, 7 pole, unequipped, crimp connection, with PE contact, 09210073031

Order No.: 42F8530

EAN: 4099889769982

MPN:

09210073031

09 21 007 3031

Series: Han D

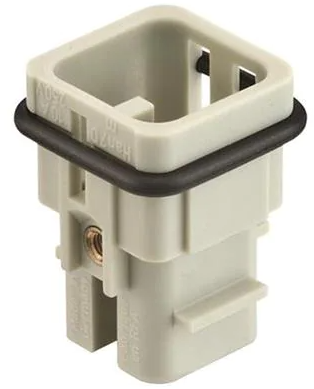

09210073031 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Ausführung Stifteinsatz

Gehäusegröße 3A

Bestückung unbestückt

Kontaktanschluss Crimpanschluss

Polzahl 7-polig

Ordering Information:

Lieferung ohne Kontakte, bitte separat bestellen

Show 24 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.0932 € *

Available: 20 pcs.

Leadtime: 12 Weeks **

Total Price:

5.09 € *

Price list

Quantity

Price per unit*

1 pcs.

5.0932 €

10 pcs.

4.4863 €

100 pcs.

3.9389 €

250 pcs.

3.7842 €

1000 pcs.

3.5343 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09210073031, Harting

Insert, Crimp termination, Male, Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌10 A, Size: 3 A, Contacts: 7, Conductor cross-section: 0.14 - 2.5 mm²

Technical specifications

	Ausführung	Stifteinsatz
	Bestückung	unbestückt
	Gehäusegröße	3A
	Kontaktanschluss	Crimpanschluss
	PE-Kontakt	Yes
	Polzahl	7-polig

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Maßzeichnung - EN Maßzeichnung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
Substanz Beschreibung	Blei
