09210153001 | Harting

Name: Pin contact insert, 10A, 15 pole, unequipped, crimp connection, with PE contact, 09210153001
Brand: Harting
SKU: 42F8534
Availability: OutOfStock

Pin contact insert, 10A, 15 pole, unequipped, crimp connection, with PE contact, 09210153001

Order No.: 42F8534

EAN: 4099889770001

MPN:

09210153001

09 21 015 3001

Series: Han D

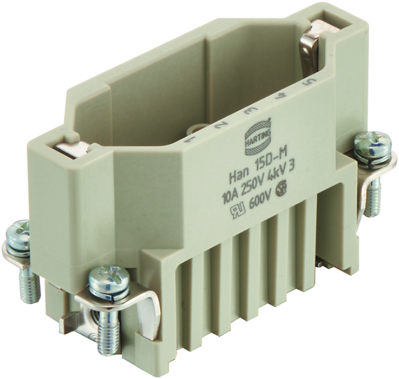

09210153001 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Version pin insert

Shell size 10A

Additional parts unequipped

Contact connection crimp connection

Pin number 15 pole

Ordering Information:

Supplied without contacts, please order these separately

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Pin contact insert, 10A, 15 pole, unequipped, crimp connection, with PE contact, 09210153001

Order No.: 42F8609

Manufacturer: Harting

per pc. 9.6033 € *

*incl. VAT plus shipping costs

Description

Contact insert, 09210153001, Harting

Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌10 A, Size: 10 A, Contacts: 15, Conductor cross-section: 0.14 - 2.5 mm²

Technical specifications

	Version	pin insert
	Additional parts	unequipped
	Shell size	10A
	Contact connection	crimp connection
	PE contact	Yes
	Pin number	15 pole

Show similar products 0

Download

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Product Change Notification - DE Product Change Notification

Logistics

Country of origin	RO
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
