09210153001 | Harting

Pin contact insert, 10A, 15 pole, unequipped, crimp connection, with PE contact, 09210153001

Order No.: 42F8609
EAN: 4099889770179
MPN:
09210153001
09 21 015 3001
Series: Han D

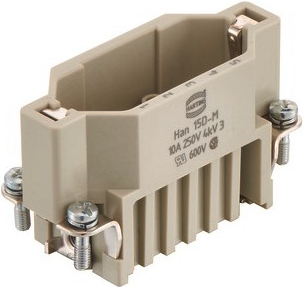

09210153001 Harting Contact Inserts Image 1

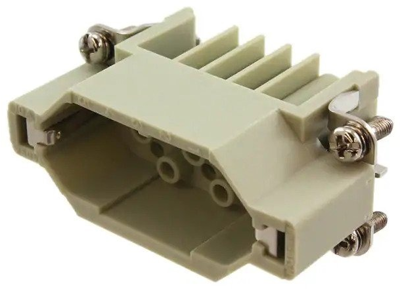

09210153001 Harting Contact Inserts Image 2
Image may differ
Unit Price (€ / pc.)
9.9484 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
9.9484 €

Contact insert, 09 21 015 3001, Harting

Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 10 A, Contacts: 15, Conductor cross-section: 0.14-2.5 mm²

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 10A
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 10 A
  • Rated voltage: 250 V
  • PE contact: Yes
Technical specifications
Version Stifteinsatz
Additional parts unbestückt
Shell size 10A
Contact connection Crimpanschluss
PE contact Yes
Pin number 15-polig
Logistics
Country of origin RO
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
