09210153101 | Harting

Name: Socket contact insert, 10A, 15 pole, unequipped, crimp connection, with PE contact, 09210153101
Brand: Harting
SKU: 42F8536
Price: 9.59 EUR
Availability: OutOfStock

Socket contact insert, 10A, 15 pole, unequipped, crimp connection, with PE contact, 09210153101

Order No.: 42F8536

EAN: 4099889770018

MPN:

09210153101

09 21 015 3101

Series: Han D

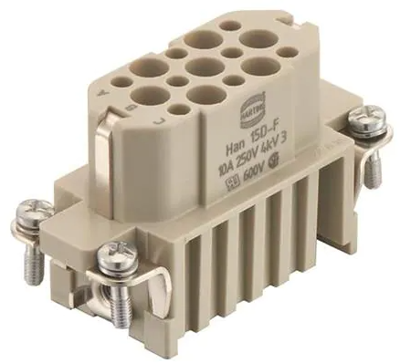

09210153101 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Version socket insert

Shell size 10A

Additional parts unequipped

Contact connection crimp connection

Pin number 15 pole

Ordering Information:

Supplied without contacts, please order these separately

Show 24 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.5914 € *

Available: 0 pcs.

Leadtime: 20 Weeks **

Add to Cart

Total Price:

9.59 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09210153101, Harting

Insert, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌10 A, Size: 10 A, Contacts: 15, Conductor cross-section: 0.14 - 2.5 mm²

Technical specifications

	Version	socket insert
	Additional parts	unequipped
	Shell size	10A
	Contact connection	crimp connection
	PE contact	Yes
	Pin number	15 pole

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

DID – Dimension drawing - EN DID – Dimension drawing

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	RO
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
