09210253101 | Harting

Name: Socket contact insert, 16A, 25 pole, unequipped, crimp connection, with PE contact, 09210253101
Brand: Harting
SKU: 42F8540
Price: 10.23 EUR
Availability: InStock

Socket contact insert, 16A, 25 pole, unequipped, crimp connection, with PE contact, 09210253101

Order No.: 42F8540

EAN: 4099889770032

MPN:

09210253101

09 21 025 3101

Series: Han D

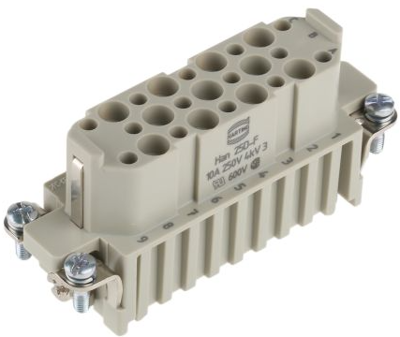

09210253101 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Ausführung Buchseneinsatz

Gehäusegröße 16A

Bestückung unbestückt

Kontaktanschluss Crimpanschluss

Polzahl 25-polig

Ordering Information:

Lieferung ohne Kontakte, bitte separat bestellen

Show 24 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

10.234 € *

Available: 30 pcs.

Next delivery: 1 pcs. on 2025-06-16

Leadtime: 25 Weeks **

Total Price:

10.23 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09210253101, Harting

Insert, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌10 A, Size: 16 A, Contacts: 25, Conductor cross-section: 0.14 - 2.5 mm²

Technical specifications

	Ausführung	Buchseneinsatz
	Bestückung	unbestückt
	Gehäusegröße	16A
	Kontaktanschluss	Crimpanschluss
	PE-Kontakt	Yes
	Polzahl	25-polig

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Maßzeichnung - EN Maßzeichnung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	RO
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
