09210403101 | Harting

Name: Socket contact insert, 16B, 40 pole, unequipped, crimp connection, with PE contact, 09210403101
Brand: Harting
SKU: 42F8544
Price: 18.30 EUR
Availability: InStock

Socket contact insert, 16B, 40 pole, unequipped, crimp connection, with PE contact, 09210403101

Order No.: 42F8544

EAN: 4099889770063

MPN:

09210403101

09 21 040 3101

Series: Han D

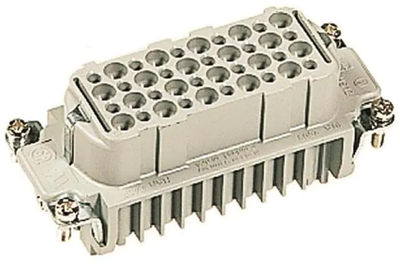

09210403101 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Version socket insert

Shell size 16B

Additional parts unequipped

Contact connection crimp connection

Pin number 40 pole

Ordering Information:

Supplied without contacts, please order these separately

Show 24 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

18.3022 € *

Available: 22 pcs.

Leadtime: 10 Weeks **

Total Price:

18.30 € *

Price list

Quantity

Price per unit*

1 pcs.

18.3022 €

10 pcs.

16.1007 €

50 pcs.

15.0059 €

150 pcs.

14.3514 €

500 pcs.

13.6136 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09210403101, Harting

Insert, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌10 A, Size: 16 B, Contacts: 40, Conductor cross-section: 0.14 - 2.5 mm²

Technical specifications

	Version	socket insert
	Additional parts	unequipped
	Shell size	16B
	Contact connection	crimp connection
	PE contact	Yes
	Pin number	40 pole

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

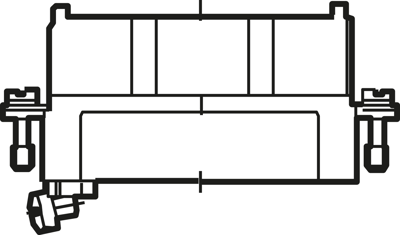

DID – Dimension drawing - EN DID – Dimension drawing

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	RO
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
