09210643001 | Harting

Name: Pin contact insert, 24B, 64 pole, unequipped, crimp connection, with PE contact, 09210643001
Brand: Harting
SKU: 42F8543
Price: 13.44 EUR
Availability: OutOfStock

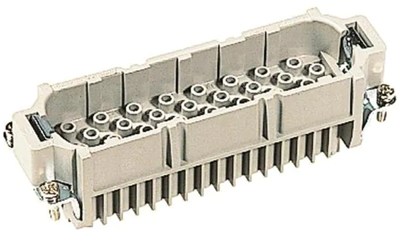

Pin contact insert, 24B, 64 pole, unequipped, crimp connection, with PE contact, 09210643001

Order No.: 42F8543

EAN: 4099889770056

MPN:

09210643001

09 21 064 3001

Series: Han D

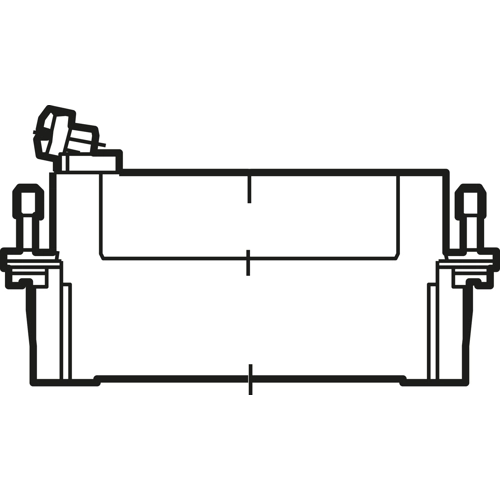

09210643001 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Version pin insert

Shell size 24B

Additional parts unequipped

Contact connection crimp connection

Pin number 64 pole

Ordering Information:

Supplied without contacts, please order these separately

Show 25 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

13.4351 € *

Available: 0 pcs.

Leadtime: 10 Weeks **

Add to Cart

Total Price:

13.44 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09210643001, Harting

Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌10 A, Size: 24 B, Contacts: 64, Conductor cross-section: 0.14 - 2.5 mm²

Technical specifications

	Version	pin insert
	Additional parts	unequipped
	Shell size	24B
	Contact connection	crimp connection
	PE contact	Yes
	Pin number	64 pole

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

DID – Dimension drawing - EN DID – Dimension drawing

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	RO
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
