09310062701 | Harting

Name: Socket contact insert, 16B, 6 pole, equipped, screw connection, with PE contact, 09310062701
Brand: Harting
SKU: 42F1934
Price: 28.70 EUR
Availability: OutOfStock

Socket contact insert, 16B, 6 pole, equipped, screw connection, with PE contact, 09310062701

Order No.: 42F1934

EAN: 4099889769630

MPN:

09310062701

09 31 006 2701

Series: Han HsB

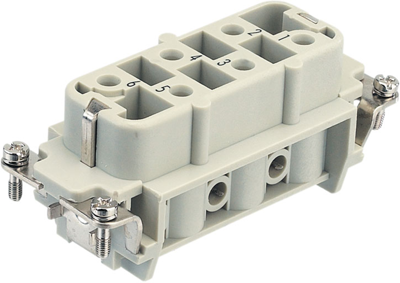

09310062701 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Ausführung Buchseneinsatz

Gehäusegröße 16B

Bestückung bestückt

Kontaktanschluss Schraubanschluss

Polzahl 6-polig

Ordering Information:

Kontakte im Lieferumfang enthalten

Show 3 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

28.7028 € *

Available: 0 pcs.

Leadtime: 2 Weeks **

Add to Cart

Total Price:

28.70 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09310062701, Harting

Insert, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌35 A, Size: 16 B, Contacts: 6, Conductor cross-section: 1.5 - 6 mm², Copper alloy, Silver plated

Technical specifications

	Ausführung	Buchseneinsatz
	Bestückung	bestückt
	Gehäusegröße	16B
	Kontaktanschluss	Schraubanschluss
	PE-Kontakt	Yes
	Polzahl	6-polig

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Maßzeichnung - EN Maßzeichnung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	RO
Zolltarifnummer	85366990

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
Substanz Beschreibung	Blei

Accessory
