09330062601 | Harting

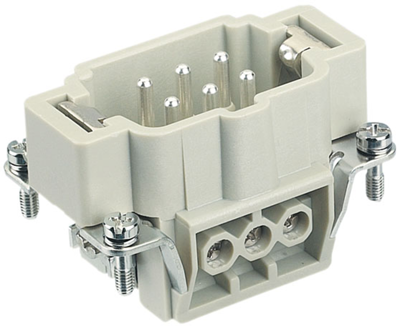

Name: Pin contact insert, 6B, 6 pole, equipped, screw connection, with PE contact, 09330062601
Brand: Harting
SKU: 42F100
Price: 10.53 EUR
Availability: InStock

Pin contact insert, 6B, 6 pole, equipped, screw connection, with PE contact, 09330062601

Order No.: 42F100

EAN: 4099889769463

MPN:

09330062601

09 33 006 2601

Series: Han E/ES

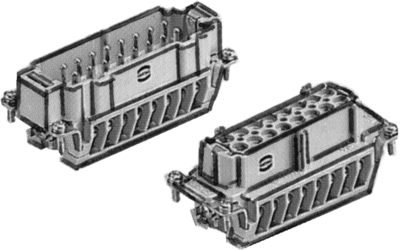

09330062601 Harting Contact Inserts Image 2

09330062601 Harting Contact Inserts Image 3

Image may differ

Key Specification:

Ausführung Stifteinsatz

Gehäusegröße 6B

Bestückung bestückt

Kontaktanschluss Schraubanschluss

Polzahl 6-polig

Ordering Information:

Kontakte im Lieferumfang enthalten

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

10.5315 € *

Available: 11 pcs.

Leadtime: 7 Weeks **

Total Price:

10.53 € *

Price list

Quantity

Price per unit*

1 pcs.

10.5315 €

10 pcs.

9.2701 €

50 pcs.

8.6513 €

150 pcs.

8.2705 €

500 pcs.

7.8302 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09330062601, Harting

Insert, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 6 B, Contacts: 6, Conductor cross-section: 0.75 - 2.5 mm², Copper alloy, Silver plated

Technical specifications

	Ausführung	Stifteinsatz
	Bestückung	bestückt
	Gehäusegröße	6B
	Kontaktanschluss	Schraubanschluss
	PE-Kontakt	Yes
	Polzahl	6-polig

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Maßzeichnung - EN Maßzeichnung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85366990

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
Substanz Beschreibung	Blei
