09330062702 | Harting

Name: Socket contact insert, 6B, 6 pole, unequipped, crimp connection, with PE contact, 09330062702
Brand: Harting
SKU: 42F110
Price: 6.08 EUR
Availability: OutOfStock

Socket contact insert, 6B, 6 pole, unequipped, crimp connection, with PE contact, 09330062702

Order No.: 42F110

EAN: 4099889769487

MPN:

09330062702

09 33 006 2702

Series: Han E/ES

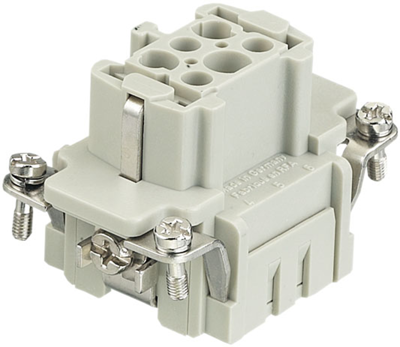

09330062702 Harting Contact Inserts Image 2

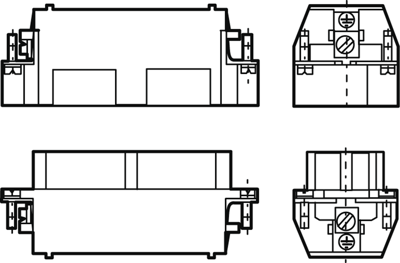

09330062702 Harting Contact Inserts Image 3

Image may differ

Key Specification:

Version socket insert

Shell size 6B

Additional parts unequipped

Contact connection crimp connection

Pin number 6 pole

Ordering Information:

Supplied without contacts, please order these separately

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

6.0809 € *

Available: 0 pcs.

Leadtime: 9 Weeks **

Add to Cart

Total Price:

6.08 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09330062702, Harting

Insert, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 6 B, Contacts: 6, Conductor cross-section: 0.14 - 4 mm²

Technical specifications

	Version	socket insert
	Additional parts	unequipped
	Shell size	6B
	Contact connection	crimp connection
	PE contact	Yes
	Pin number	6 pole

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

DID – Dimension drawing - EN DID – Dimension drawing

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85366990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead
